TKey

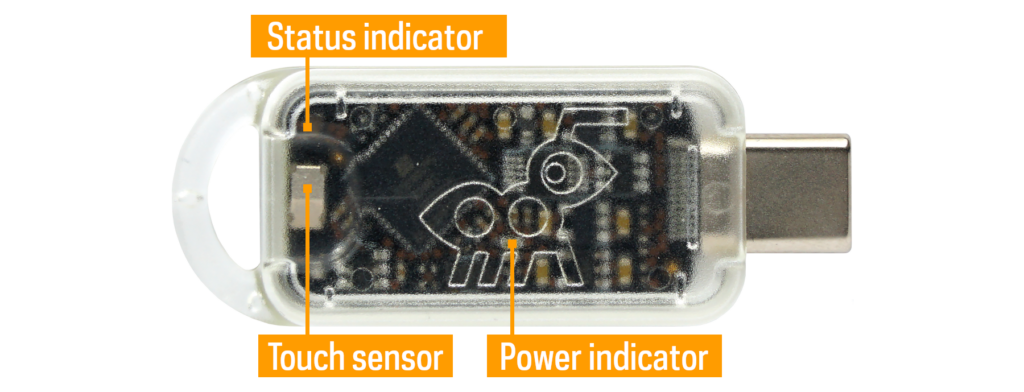

TKey is a new type of flexible USB security token. TKey is open source hardware and software. Our statement is that all products will be open source, it’s an important part of our core values of being transparent and trustworthy.

Each TKey device contains a Unique Device Secret (UDS), which together with the application measurement, and an optional user-provided seed, is used to derive key material unique to each application. This guarantees that if the integrity of the application loaded onto the device has been tampered with, the correct keys needed for an authentication will not be generated. This allows for open-ended, flexible usage. Given the right application, the TKey can support use cases such as SSH login, Ed25519 signing, Root of Trust, FIDO2, Passkeys, TOTP, and more. Find currently supported applications in the download section.

Read more:
Many details on how TKey works and what it can be used for can be found in tech blog posts.

Tech Sheet

Case: Injection molded
- Material: PA12 - Grilamid TR 90
- Color: Transparent, blasted.
Case: 3D printed (prior to December 7, 2023)
- Resin: Formlabs Clear Resin (SLA)
- Color: Translucent white.

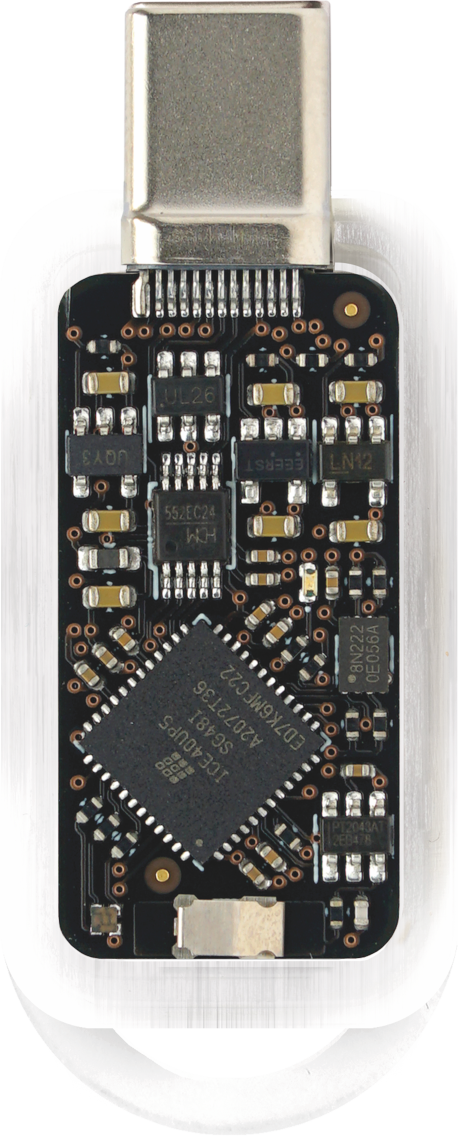

PCB material: FR4
CPU: RISC-V PicoRV32 core in a Lattice iCE40 UP5K FPGA
Connector: USB-C
Input voltage: 5V
Max current consumption: 100mA
Operating temperature: 0°C-40°C
Compliance: CE, FCC

Adapt TKey for your needs

All information on how to develop applications for TKey can be found in the Developer Handbook.
